Ground signals

These were all scratchbuilt by Prem Holdaway, although using Model Signal Engineering discs. The mechanisms that operate them under the boards were built by Peter Wilson.

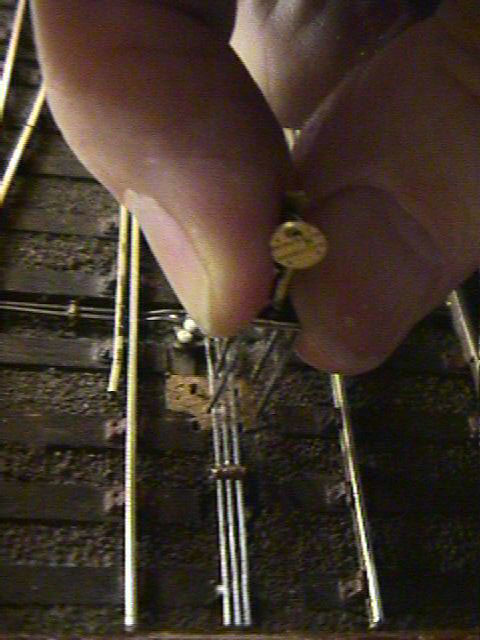

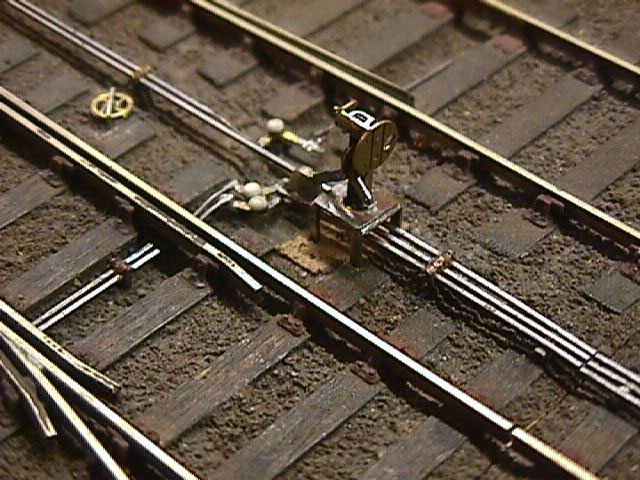

Signal 14, its disc not yet connected to its operating mechanism, sits on a stool elevated above the point rodding.

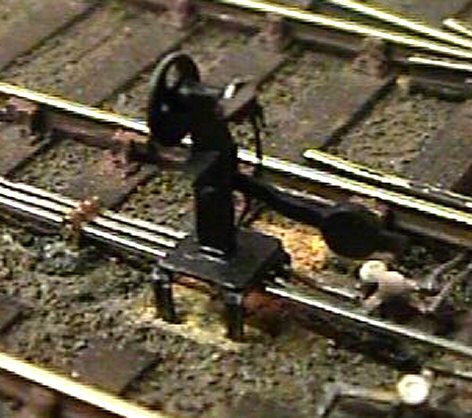

Signal 14 straddles the point rodding on an elevated base

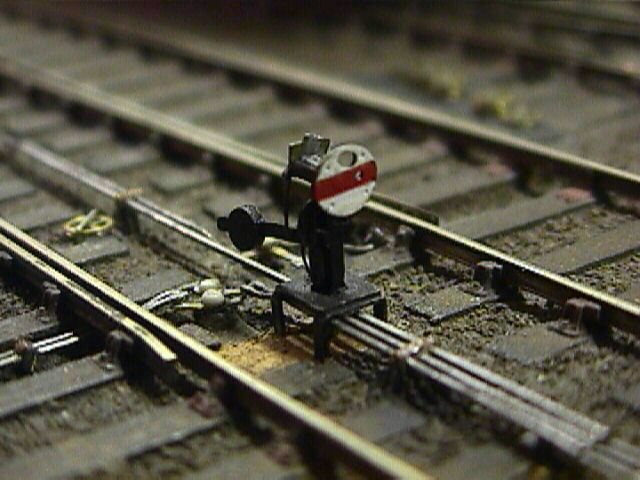

Signal 14 from the front painted and working

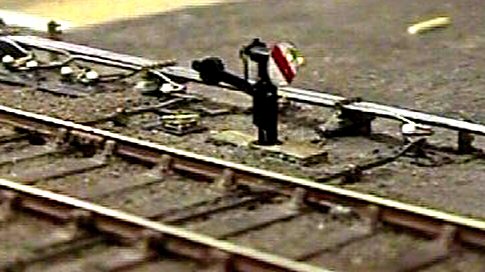

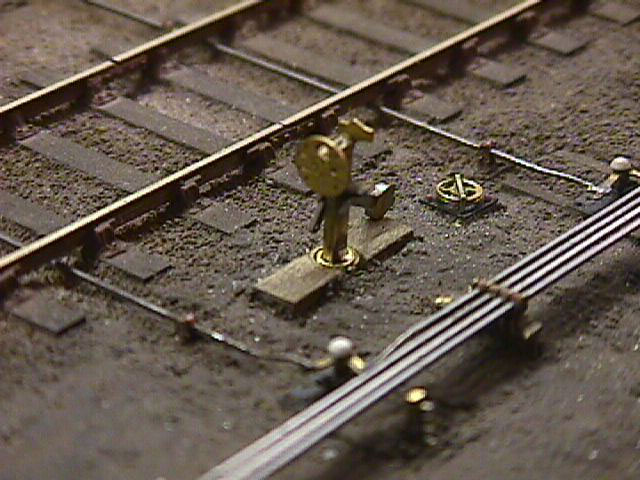

Signal 15

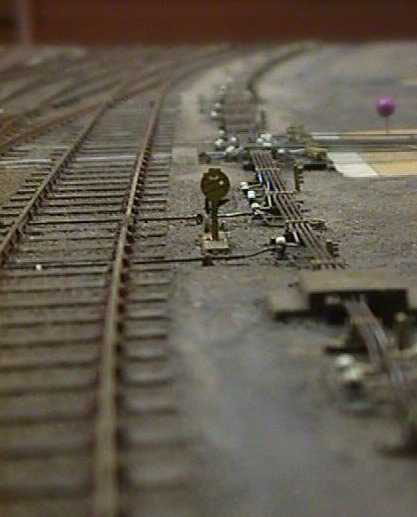

Signal 15 from the front

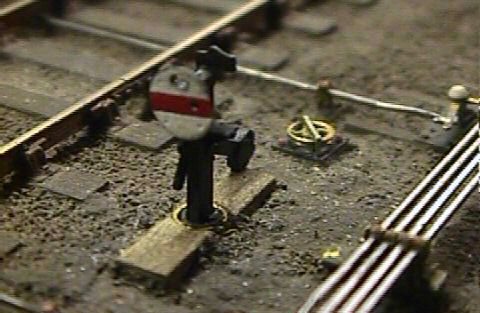

Signal 15 painted

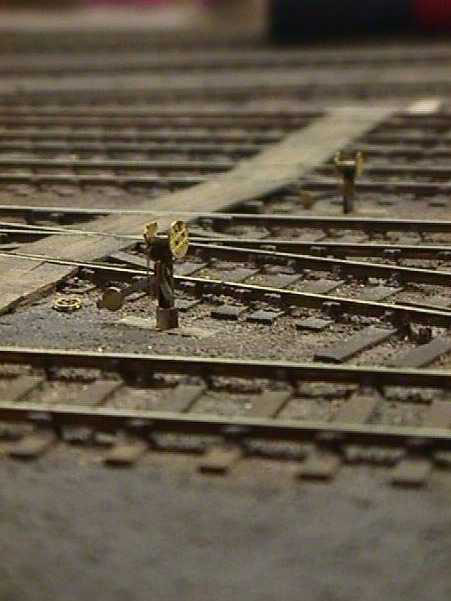

Signal 18 working but not painted; signal 20 in background

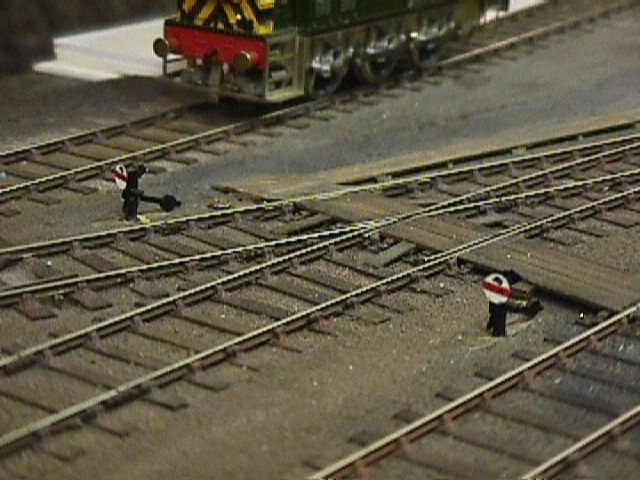

Signals 18 and 20

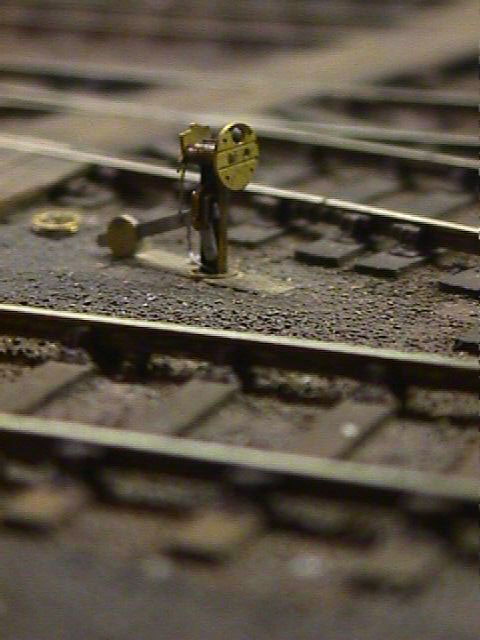

Signal 20

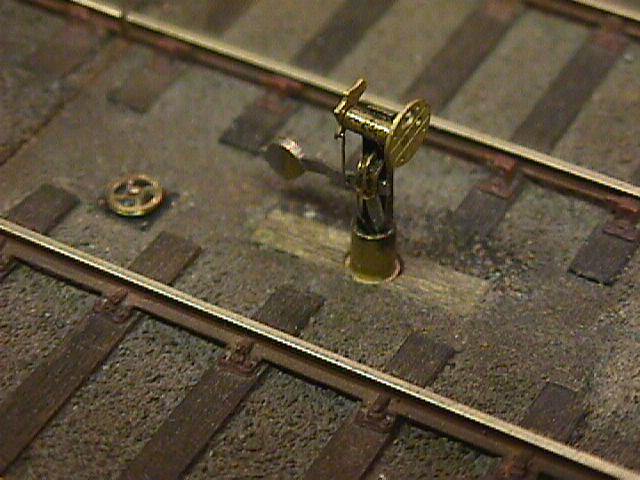

Signal 23

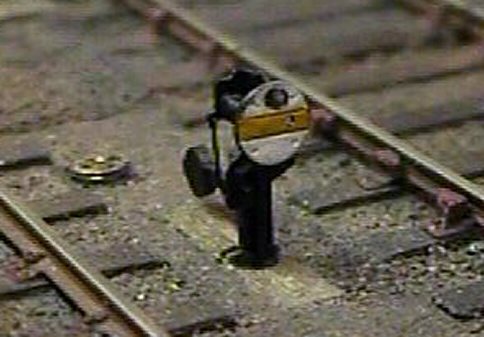

Signal 23 painted

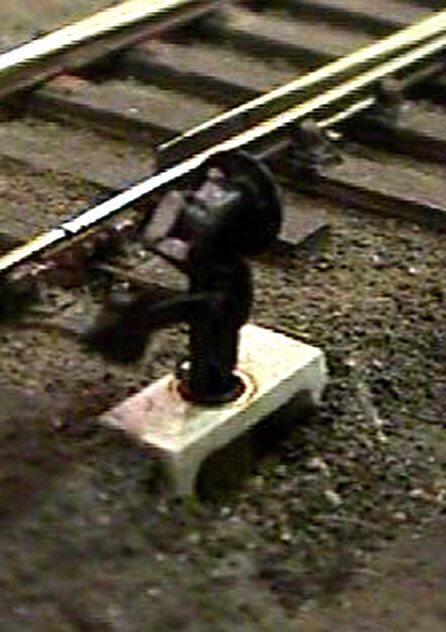

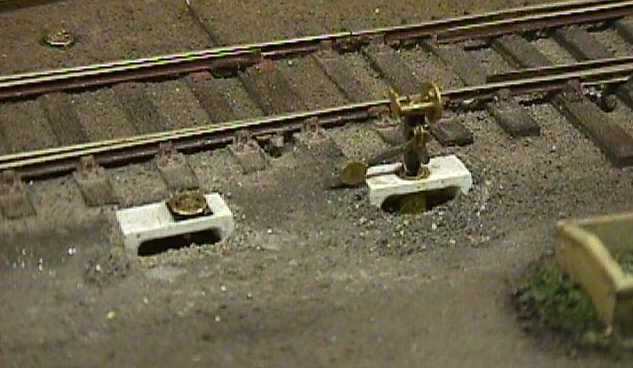

Signal 26

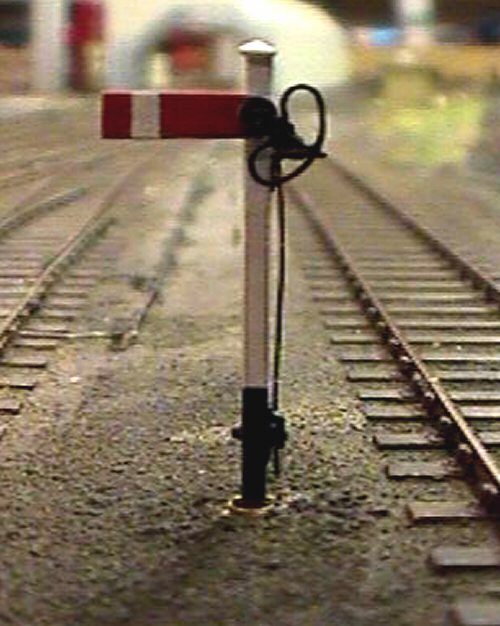

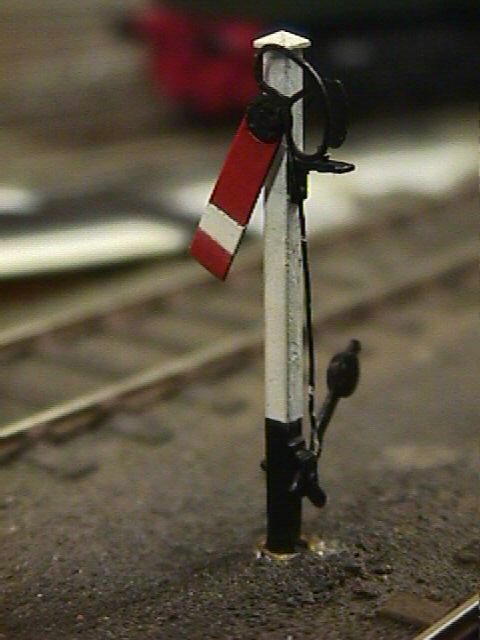

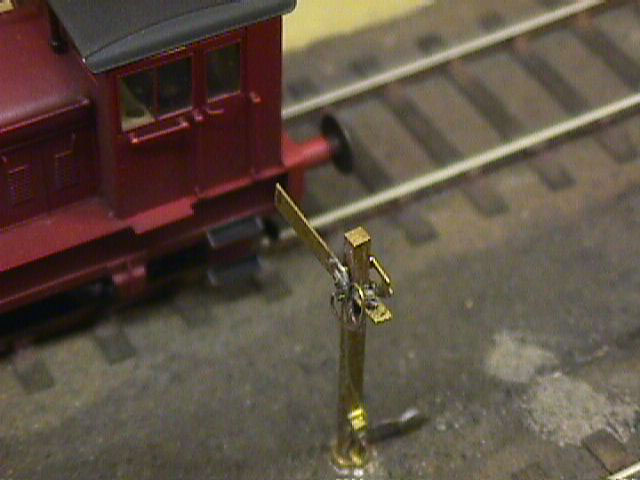

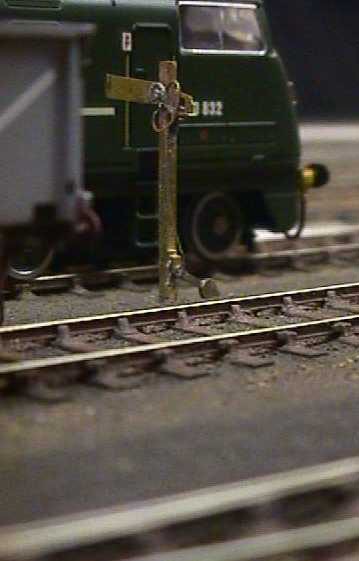

Signal 27

Signal 27

Front veiw when painted

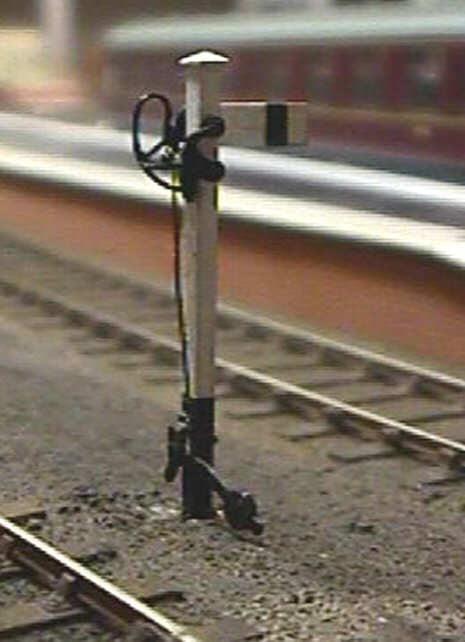

Signal 27 from the back
